Dormer S814HB Carbide 4 Flue End Mill AlCrN Coating

Dormer S814HB Carbide 4 Flue End Mill AlCrN Coating

Descriptions

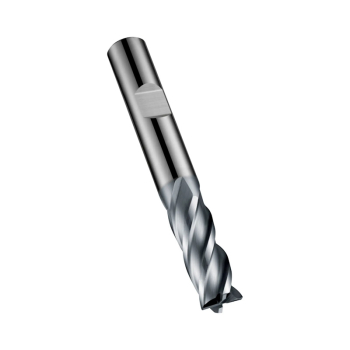

Short series end mill with 4 flutes, 45° chamfered corner edges, according to DIN 6527 L standard with a 6mm Weldon shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

There are no downloads for this product.

Code Description Diameter Flute Length Overall Length Price Quantity
02-6229A Dormer S814HB 3.0mm Carbide 4 Flute End Mill Alcrona 3.0mm 8mm 57mm
£22.10 (exc VAT)
Save £29.30 (List £51.40)
02-6229B Dormer S814HB 4.0mm Carbide 4 Flute End Mill Alcrona 4.0mm 11mm 57mm
£24.04 (exc VAT)
Save £31.86 (List £55.90)
02-6229C Dormer S814HB 5.0mm Carbide 4 Flute End Mill Alcrona 5.0mm 13mm 57mm
£24.55 (exc VAT)
Save £32.55 (List £57.10)
02-6229D Dormer S814HB 6.0mm Carbide 4 Flute End Mill Alcrona 6.0mm 13mm 57mm
£24.55 (exc VAT)
Save £32.55 (List £57.10)
02-6229E Dormer S814HB 8.0mm Carbide 4 Flute End Mill Alcrona 8.0mm 19mm 63mm
£34.36 (exc VAT)
Save £45.54 (List £79.90)
02-6229F Dormer S814HB 10.0mm Carbide 4 Flute End Mill Alcrona 10.0mm 22mm 72mm
£45.58 (exc VAT)
Save £60.42 (List £106.00)
02-6229G Dormer S814HB 12.0mm Carbide 4 Flute End Mill Alcrona 12.0mm 26mm 83mm
£62.78 (exc VAT)
Save £83.22 (List £146.00)
02-6229H Dormer S814HB 16.0mm Carbide 4 Flute End Mill Alcrona 16.0mm 32mm 92mm
£103.20 (exc VAT)
Save £136.80 (List £240.00)
02-6229I Dormer S814HB 20.0mm Carbide 4 Flute End Mill Alcrona 20.0mm 38mm 104mm
£159.53 (exc VAT)
Save £211.47 (List £371.00)
02-6229J Dormer S814HB 25.0mm Carbide 4 Flute End Mill Alcrona 25.0mm 45mm 121mm
£191.35 (exc VAT)
Save £253.65 (List £445.00)
