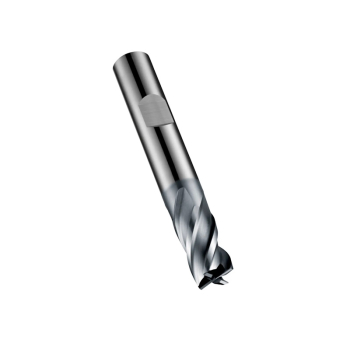

Dormer S804HB Carbide 4 Flute End Mill AlCrN Coating

Dormer S804HB Carbide 4 Flute End Mill AlCrN Coating

Descriptions

Extra short series end mill with 4 flutes, 45° chamfered corner edges, according to DIN 6527 K standard with a 16mm Weldon shank, solid carbide with AlCrN coating, 34° helix and 9° rake angle for shoulder milling and plunging in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and copper or copper alloys

There are no downloads for this product.

Code Description Diameter Flute Length Overall Length Price Quantity
02-6581T Dormer S804HB 2.0mm Carbide 4 Flute End Mill ALCRONA 2.0mm 4.0mm 50mm
£25.97 (exc VAT)
Save £34.43 (List £60.40)
02-6581U Dormer S804HB 3.0mm Carbide 4 Flute End Mill ALCRONA 3.0mm 5mm 50mm
£25.97 (exc VAT)
Save £34.43 (List £60.40)
02-6581V Dormer S804HB 4.0mm Carbide 4 Flute End Mill ALCRONA 4.0mm 8mm 54mm
£28.29 (exc VAT)
Save £37.51 (List £65.80)
02-6581W Dormer S804HB 5.0mm Carbide 4 Flute End Mill ALCRONA 5.0mm 9mm 54mm
£28.85 (exc VAT)
Save £38.25 (List £67.10)
02-6581X Dormer S804HB 6.0mm Carbide 4 Flute End Mill ALCRONA 6.0mm 10mm 54mm
£28.85 (exc VAT)
Save £38.25 (List £67.10)
02-6581Y Dormer S804HB 8.0mm Carbide 4 Flute End Mill ALCRONA 8.0mm 12mm 58mm
£40.42 (exc VAT)
Save £53.58 (List £94.00)
02-6581Z Dormer S804HB 10.0mm Carbide 4 Flute End Mill ALCRONA 10.0mm 14mm 66mm
£53.32 (exc VAT)
Save £70.68 (List £124.00)
02-6581ZA Dormer S804HB 12.0mm Carbide 4 Flute End Mill ALCRONA 12.0mm 16mm 73mm
£73.53 (exc VAT)
Save £97.47 (List £171.00)
02-6581ZB Dormer S804HB 16.0mm Carbide 4 Flute End Mill ALCRONA 16.0mm 22mm 82mm
£121.26 (exc VAT)
Save £160.74 (List £282.00)
02-6581ZC Dormer S804HB 20.0mm Carbide 4 Flute End Mill ALCRONA 20.0mm 26mm 92mm
£187.48 (exc VAT)
Save £248.52 (List £436.00)
02-6581ZD Dormer S804HB 25.0mm Carbide 4 Flute End Mill ALCRONA 25.0mm 32mm 121mm
£225.32 (exc VAT)
Save £298.68 (List £524.00)
