Dormer S767 Carbide 4 Flute Coated Corner Radius End Mill

Dormer S767 Carbide 4 Flute Coated Corner Radius End Mill

Descriptions

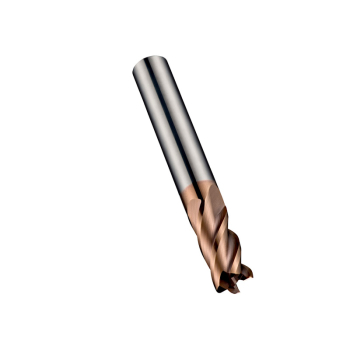

Dormer S767 Carbide 4 Flute Coated Corner Radius End Mill

Short series corner radius end mill with 4 flutes, solid carbide with TiSiN coating, unequal helix with differential pitch and 10° rake angle for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and high-temperature alloys

There are no downloads for this product.

There are no reviews for this product yet. Be the first to add one!

Code Description Diameter Flute Length Overall Length Radius Price Quantity
02-6296A Dormer S767 4.0mm 4 Flute Carbide End Mill 0.30mm Rad 4.0mm 11.0mm 57.0mm 0.30mm
£41.07 (exc VAT)
Save £54.43 (List £95.50)
02-6296B Dormer S767 4.0mm 4 Flute Carbide End Mill 0.50mm Rad 4.0mm 11.0mm 57.0mm 0.50mm
£41.07 (exc VAT)
Save £54.43 (List £95.50)
02-6296C Dormer S767 5.0mm 4 Flute Carbide End Mill 0.30mm Rad 5.0mm 13.0mm 57.0mm 0.30mm
£41.88 (exc VAT)
Save £55.52 (List £97.40)
02-6296D Dormer S767 5.0mm 4 Flute Carbide End Mill 0.50mm Rad 5.0mm 13.0mm 57.0m 0.50mm
£41.88 (exc VAT)
Save £55.52 (List £97.40)
02-6296E Dormer S767 6.0mm 4 Flute Carbide End Mill 0.30mm Rad 6.0mm 13.0mm 57.0mm 0.30mm
£41.88 (exc VAT)
Save £55.52 (List £97.40)
02-6296F Dormer S767 6.0mm 4 Flute Carbide End Mill 0.50mm Rad 6.0mm 13.0mm 57.0mm 0.50mm
£41.88 (exc VAT)
Save £55.52 (List £97.40)
02-6296G Dormer S767 6.0mm 4 Flute Carbide End Mill 1.0mm Rad 6.0mm 13.0mm 57.0mm 1.0mm
£41.88 (exc VAT)
Save £55.52 (List £97.40)
02-6296H Dormer S767 8.0mm 4 Flute Carbide End Mill 0.30mm Rad 8.0mm 20.0mm 64.0mm 0.30mm
£58.48 (exc VAT)
Save £77.52 (List £136.00)
02-6296I Dormer S767 8.0mm 4 Flute Carbide End Mill 0.50mm Rad 8.0mm 20.0mm 64.0mm 0.50mm
£58.48 (exc VAT)
Save £77.52 (List £136.00)
02-6296J Dormer S767 8.0mm 4 Flute Carbide End Mill 1.0mm Rad 8.0mm 20.0mm 64.0mm 1.0mm
£58.48 (exc VAT)
Save £77.52 (List £136.00)
02-6296K Dormer S767 10.0mm 4 Flute Carbide End Mill 0.30mm Rad 10.0mm 22.0mm 72.0mm 0.30mm
£77.40 (exc VAT)
Save £102.60 (List £180.00)
02-6296L Dormer S767 10.0mm 4 Flute Carbide End Mill 0.50mm Rad 10.0mm 22.0mm 72.0mm 0.50mm
£77.40 (exc VAT)
Save £102.60 (List £180.00)
02-6296M Dormer S767 10.0mm 4 Flute Carbide End Mill 1.0mm Rad 10.0mm 22.0mm 72.0mm 1.0mm
£77.40 (exc VAT)
Save £102.60 (List £180.00)
02-6296N Dormer S767 12.0mm 4 Flute Carbide End Mill 0.30mm Rad 12.0mm 26.0mm 83.0mm 0.30mm
£106.64 (exc VAT)
Save £141.36 (List £248.00)
02-6296O Dormer S767 12.0mm 4 Flute Carbide End Mill 0.50mm Rad 12.0mm 26.0mm 83.0mm 0.50mm
£106.64 (exc VAT)
Save £141.36 (List £248.00)
02-6296P Dormer S767 12.0mm 4 Flute Carbide End Mill 1.0mm Rad 12.0mm 26.0mm 83.0mm 1.0mm
£106.64 (exc VAT)
Save £141.36 (List £248.00)
02-6296Q Dormer S767 12.0mm 4 Flute Carbide End Mill 2.0mm Rad 12.0mm 26.0mm 83.0mm 2.0mm
£106.64 (exc VAT)
Save £141.36 (List £248.00)
02-6296R Dormer S767 16.0mm 4 Flute Carbide End Mill 0.30mm Rad 16.0mm 32.0mm 92.0mm 0.30mm
£175.87 (exc VAT)
Save £233.13 (List £409.00)
02-6296S Dormer S767 16.0mm 4 Flute Carbide End Mill 0.50mm Rad 16.0mm 32.0mm 92.0mm 0.50mm
£175.87 (exc VAT)
Save £233.13 (List £409.00)
02-6296T Dormer S767 16.0mm 4 Flute Carbide End Mill 1.0mm Rad 16.0mm 32.0mm 92.0mm 1.0mm
£175.87 (exc VAT)
Save £233.13 (List £409.00)
02-6296U Dormer S767 16.0mm 4 Flute Carbide End Mill 2.0mm Rad 16.0mm 32.0mm 92.0mm 2.0mm
£175.87 (exc VAT)
Save £233.13 (List £409.00)
02-6296V Dormer S767 20.0mm 4 Flute Carbide End Mill 0.30mm Rad 20.0mm 38.0mm 104mm 0.30mm
£272.19 (exc VAT)
Save £360.81 (List £633.00)
02-6296W Dormer S767 20.0mm 4 Flute Carbide End Mill 0.50mm Rad 20.0mm 38.0mm 104.0mm 0.50mm
£272.19 (exc VAT)
Save £360.81 (List £633.00)
02-6296X Dormer S767 20.0mm 4 Flute Carbide End Mill 1.0mm Rad 20.0mm 38.0mm 104.0mm 1.0mm
£272.19 (exc VAT)
Save £360.81 (List £633.00)
02-6296Y Dormer S767 20.0mm 4 Flute Carbide End Mill 2.0mm Rad 20.0mm 38.0mm 104.0mm 2.0mm
£272.19 (exc VAT)
Save £360.81 (List £633.00)
