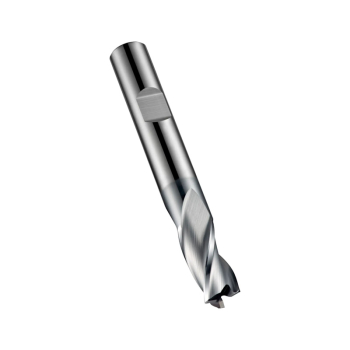

Dormer S813HB Carbide 3 Flute Slot Drill AlCrN Coating

Dormer S813HB Carbide 3 Flute Slot Drill AlCrN Coating

Descriptions

Short series slot drill with 3 flutes, 45° chamfered corner edges, according to DIN 6527 L standard with a 14mm Weldon shank, solid carbide with AlCrN coating, 28° helix and 9° rake angle for shoulder milling, plunging, slot milling and ramping in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and cast aluminium and copper or copper alloys

There are no downloads for this product.

There are no reviews for this product yet. Be the first to add one!

Code Description Diameter Colour Flute Length Price Quantity
02-6582K Dormer S813HB 2.0mm Carbide 3 Flute Slot Drill ALCRONA 2.0mm 6mm 57mm
£24.08 (exc VAT)
Save £31.92 (List £56.00)
02-6582L Dormer S813HB 2.5mm Carbide 3 Flute Slot Drill ALCRONA 2.5mm 7mm 57mm
£25.46 (exc VAT)
Save £33.74 (List £59.20)
02-6582M Dormer S813HB 3.0mm Carbide 3 Flute Slot Drill ALCRONA 3.0mm 7mm 57mm
£24.08 (exc VAT)
Save £31.92 (List £56.00)
02-6582N Dormer S813HB 3.5mm Carbide 3 Flute Slot Drill ALCRONA 3.5mm 7mm 57mm
£26.75 (exc VAT)
Save £35.45 (List £62.20)
02-6582O Dormer S813HB 4.0mm Carbide 3 Flute Slot Drill ALCRONA 4.0mm 8mm 57mm
£26.23 (exc VAT)
Save £34.77 (List £61.00)
02-6582P Dormer S813HB 4.5mm Carbide 3 Flute Slot Drill ALCRONA 4.5mm 8mm 57mm
£29.46 (exc VAT)
Save £39.04 (List £68.50)
02-6582Q Dormer S813HB 5.0mm Carbide 3 Flute Slot Drill ALCRONA 5.0mm 10mm 57mm
£26.75 (exc VAT)
Save £35.45 (List £62.20)
02-6582R Dormer S813HB 6.0mm Carbide 3 Flute Slot Drill ALCRONA 6.0mm 10mm 57mm
£26.75 (exc VAT)
Save £35.45 (List £62.20)
02-6582S Dormer S813HB 7.0mm Carbide 3 Flute Slot Drill ALCRONA 7.0mm 13mm 63mm
£40.16 (exc VAT)
Save £53.24 (List £93.40)
02-6583A Dormer S813HB 9.0mm Carbide 3 Flute Slot Drill ALCRONA 9.0mm 16mm 72mm
£53.75 (exc VAT)
Save £71.25 (List £125.00)
02-6585A Dormer S813HB 14.0mm Carbide 3 Flute Slot Drill ALCRONA 14.0mm 22mm 83mm
£85.57 (exc VAT)
Save £113.43 (List £199.00)
02-6585B Dormer S813HB 16.0mm Carbide 3 Flute Slot Drill ALCRONA 16.0mm 26mm 92mm
£112.23 (exc VAT)
Save £148.77 (List £261.00)
02-6585C Dormer S813HB 18.0mm Carbide 3 Flute Slot Drill ALCRONA 18.0mm 26mm 92mm
£144.48 (exc VAT)
Save £191.52 (List £336.00)
02-6585D Dormer S813HB 20.0mm Carbide 3 Flute Slot Drill ALCRONA 20.0mm 32mm 104mm
£174.15 (exc VAT)
Save £230.85 (List £405.00)
