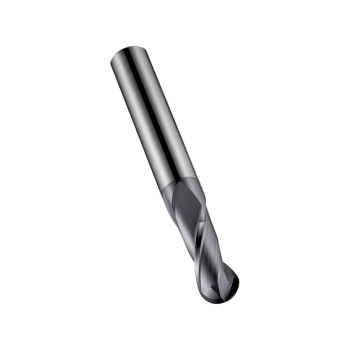

Dormer S501 Carbide Ball Nose Slot Drill

Dormer S501 Carbide Ball Nose Slot Drill

Descriptions

Dormer S501 Carbide Ball Nose Slot Drill

Short series ball-nose end mill with 2 flutes, full profile radius, according to Dormer Pramet standard with a 3mm plain shank, solid carbide with X-CEED coating, 30° helix and 10° rake angle for copy milling in steel and cast steel, ferritic and martensitic stainless steel, cast-iron and copper or copper alloys

There are no downloads for this product.

There are no reviews for this product yet. Be the first to add one!

Code Description Diameter Flute Length Overall Length Price Quantity
02-6610 Dormer S501 1.0mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 1.0mm 3mm 38mm
£42.66 (exc VAT)
Save £56.54 (List £99.20)
02-6611 Dormer S501 1.5mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 1.5mm 3mm 38mm
£42.66 (exc VAT)
Save £56.54 (List £99.20)
02-6610A Dormer S501 2.0mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 2.0mm 6mm 38mm
£41.28 (exc VAT)
Save £54.72 (List £96.00)
02-6610B Dormer S501 2.5mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 2.5mm 7mm 38mm
£43.43 (exc VAT)
Save £57.57 (List £101.00)
02-6610D Dormer S501 3.0mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 3.0mm 7mm 38mm
£41.28 (exc VAT)
Save £54.72 (List £96.00)
02-6610E Dormer S501 4.0mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 4.0mm 8mm 57mm
£45.15 (exc VAT)
Save £59.85 (List £105.00)
02-6610G Dormer S501 6.0mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 6.0mm 10mm 57mm
£46.01 (exc VAT)
Save £60.99 (List £107.00)
02-6610H Dormer S501 7.0mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 7.0mm 13mm 63mm
£68.80 (exc VAT)
Save £91.20 (List £160.00)
02-6610J Dormer S501 8.0mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 8.0mm 16mm 63mm
£64.07 (exc VAT)
Save £84.93 (List £149.00)
02-6610K Dormer S501 16.0mm Carbide Ball Nose Slot Drill 2 Flute X-CEED Coated 16.0mm 26mm 92mm
£192.64 (exc VAT)
Save £255.36 (List £448.00)
