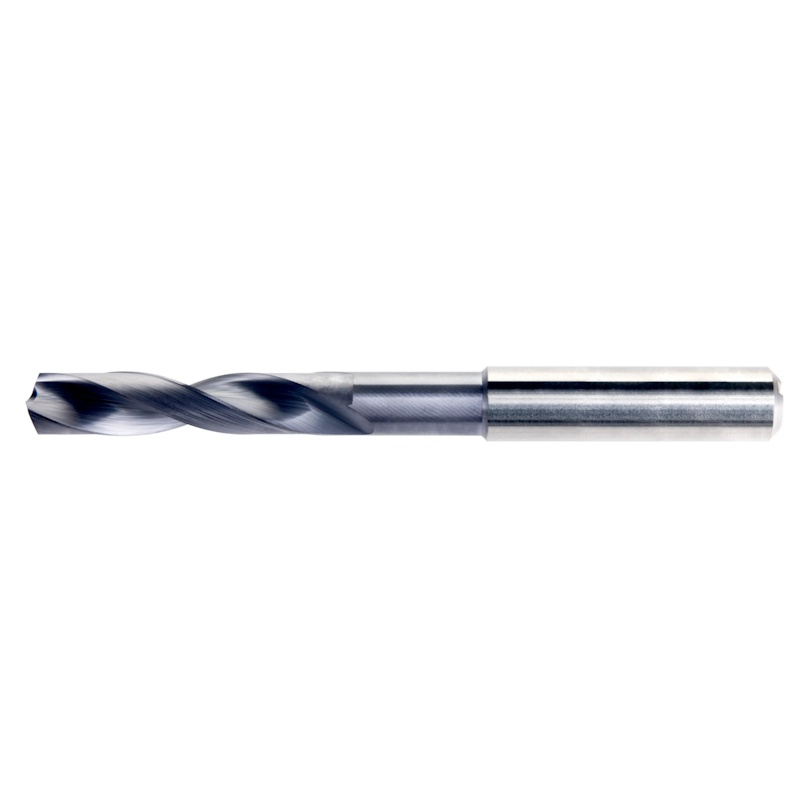

Dormer Pramet RC4P FORCE-Pilot Carbide 2XD Drill Coolant Feed TiAlN Coated
Dormer Pramet RC4P FORCE-Pilot Carbide 2XD Drill Coolant Feed TiAlN Coated
Dormer Pramet RC4P FORCE-Pilot Carbide 2XD Drill Coolant Feed TiAlN Coated

Dormer Pramet RC4P FORCE-Pilot Carbide 2XD Drill Coolant Feed TiAlN Coated

Descriptions

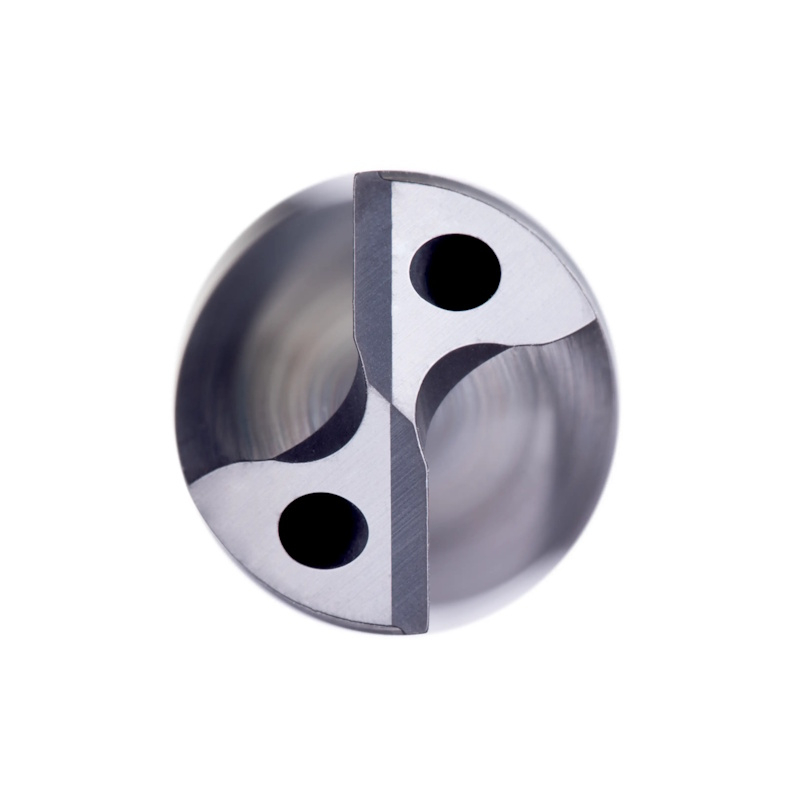

Specially designed pilot drill for precise hole positioning when using Force deep hole drills 16xD and 20xD. Features a 150° point angle and slightly larger drill tolerance p7 for accurate drilling of pilot holes up to 2xD. Internal coolant channels provide enhanced cooling efficiency. TiAlN multilayer coating to minimize friction, suitable for various materials like steel, stainless steel, cast iron, and non-ferrous metals.

There are no downloads for this product.

Code Description Diameter Flute Length Overall Length Price Quantity
W00-8236A Dormer RC4P 3.0mm Pilot Drill Force-DH Carbide Coolant Feed 3.0mm 20mm 66mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236B Dormer RC4P 1/8" Pilot Drill Force-DH Carbide Coolant Feed 1/8" 20mm 66mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236C Dormer RC4P 3.5mm Pilot Drill Force-DH Carbide Coolant Feed 3.5mm 20mm 66mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236D Dormer RC4P 4.0mm Pilot Drill Force-DH Carbide Coolant Feed 4.0mm 24mm 74mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236E Dormer RC4P 4.5mm Pilot Drill Force-DH Carbide Coolant Feed 4.5mm 24mm 74mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236F Dormer RC4P 4.8mm Pilot Drill Force-DH Carbide Coolant Feed 4.8mm 28mm 82mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236G Dormer RC4P 5.0mm Pilot Drill Force-DH Carbide Coolant Feed 5.0mm 28mm 82mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236I Dormer RC4P 5.5mm Pilot Drill Force-DH Carbide Coolant Feed 5.5mm 28mm 82mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236J Dormer RC4P 7/32" Pilot Drill Force-DH Carbide Coolant Feed 7/32" 28mm 82mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236K Dormer RC4P 6.0mm Pilot Drill Force-DH Carbide Coolant Feed 6.0mm 28mm 82mm
£46.80 (exc VAT)
Save £70.20 (List £117.00)
W00-8236L Dormer RC4P 6.5mm Pilot Drill Force-DH Carbide Coolant Feed 6.5mm 34mm 91mm
£55.60 (exc VAT)
Save £83.40 (List £139.00)
W00-8236M Dormer RC4P 6.8mm Pilot Drill Force-DH Carbide Coolant Feed 6.8mm 34mm 91mm
£55.60 (exc VAT)
Save £83.40 (List £139.00)
W00-8236N Dormer RC4P 7.0mm Pilot Drill Force-DH Carbide Coolant Feed 7.0mm 34mm 91mm
£55.60 (exc VAT)
Save £83.40 (List £139.00)
W00-8236O Dormer RC4P 7.5mm Pilot Drill Force-DH Carbide Coolant Feed 7.5mm 41mm 91mm
£55.60 (exc VAT)
Save £83.40 (List £139.00)
W00-8236P Dormer RC4P 8.0mm Pilot Drill Force-DH Carbide Coolant Feed 8.0mm 41mm 91mm
£55.60 (exc VAT)
Save £83.40 (List £139.00)
W00-8236Q Dormer RC4P 8.5mm Pilot Drill Force-DH Carbide Coolant Feed 8.5mm 47mm 103mm
£65.60 (exc VAT)
Save £98.40 (List £164.00)
W00-8236R Dormer RC4P 9.0mm Pilot Drill Force-DH Carbide Coolant Feed 9.0mm 47mm 103mm
£65.60 (exc VAT)
Save £98.40 (List £164.00)
W00-8236S Dormer RC4P 3/8" Pilot Drill Force-DH Carbide Coolant Feed 3/8" 47mm 103mm
£65.60 (exc VAT)
Save £98.40 (List £164.00)
W00-8236T Dormer RC4P 10.0mm Pilot Drill Force-DH Carbide Coolant Feed 10.0mm 47mm 103mm
£65.60 (exc VAT)
Save £98.40 (List £164.00)
W00-8236U Dormer RC4P 10.2mm Pilot Drill Force-DH Carbide Coolant Feed 10.2mm 55mm 118mm
£89.20 (exc VAT)
Save £133.80 (List £223.00)
W00-8236V Dormer RC4P 11.0mm Pilot Drill Force-DH Carbide Coolant Feed 11.0mm 55mm 118mm
£89.20 (exc VAT)
Save £133.80 (List £223.00)
W00-8236W Dormer RC4P 7/16" Pilot Drill Force-DH Carbide Coolant Feed 7/16" 55mm 118mm
£89.20 (exc VAT)
Save £133.80 (List £223.00)
W00-8236X Dormer RC4P 12.0mm Pilot Drill Force-DH Carbide Coolant Feed 12.0mm 55mm 118mm
£89.20 (exc VAT)
Save £133.80 (List £223.00)
W00-8236Y Dormer RC4P 13.0mm Pilot Drill Force-DH Carbide Coolant Feed 13.0mm 60mm 124mm
£121.20 (exc VAT)
Save £181.80 (List £303.00)
W00-8236Z Dormer RC4P 14.0mm Pilot Drill Force-DH Carbide Coolant Feed 14.0mm 60mm 124mm
£121.20 (exc VAT)
Save £181.80 (List £303.00)
